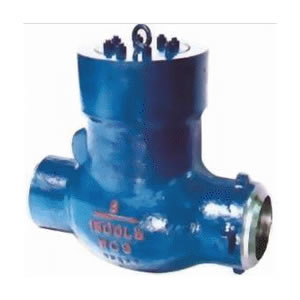

焊接止回閥H64C
2016-08-10
升降式止回閥的結構一般與截止閥相似，其閥瓣沿著通道中心線作升降運動，動作可靠，但流體阻力較大，適用于較小口徑的場合。升降式止回閥可分為直通式和立式兩種。直通式升降式止回閥一般只能安裝在水平管路，而立式升降止回閥一般應安裝在垂直管路。
旋啟式止回閥的閥瓣繞轉軸作旋轉運動。其流體阻力一般小于升降式止回閥，它適用于較大口徑的場合。旋啟式止回閥根據閥瓣的數目可分為單瓣旋啟式、雙瓣旋啟式及多瓣旋啟式三種。單瓣旋啟式止回閥一般適用于中等口徑的場合。大口徑管路選用單瓣旋啟式止回閥時，為減少水錘壓力，最好采用能減小水錘壓力的緩閉止回閥。雙瓣旋啟式止回閥適用于大中口徑管路。對夾雙瓣旋啟式止回閥結構小、重量輕，是一種發展較快的止回閥；多瓣旋啟式止回閥適用于大口徑管道路。
主要零件材料及性能規范
| 主 要 零 部 件 | 閥體、閥蓋、搖桿 | WCB | CF8 | CF8M | WC6、WC9 |
| 閥瓣 | WCB堆Cr13或硬質合金 | CF8堆硬質合金 | CF8M堆硬質合金 | WC6、WC9堆硬質合金 | |
| 閥座 | 25堆Cr13或硬質合金 | 304堆硬質合金 | 316堆硬質合金 | 20Cr1MoV堆硬質合金 | |
| 墊片 | 軟鐵、XB450 | 聚四氟乙烯 | 聚四氟乙烯 | 不銹鋼+耐酸石棉纏繞墊 | |
| 螺栓 | 35CrMoA | 35CrMoA | 35CrMoA | 25Cr1Mo1V | |
| 螺母 | 45 | 45 | 45 | 35CrMoA | |
| 主要參數 | 適用介質 | 油品、水、蒸汽 | 硝酸類 | 醋酸類 | 油品、水、蒸汽 |
|
適用溫度 ℃ |
≤425 | ≤200 | ≤200 | ≤550 |
| 型號 |
公稱 通徑 NPS(in) |
壓力級 Class |
主要結構尺寸 |
閥體 材料 |
性能規范 | |||||
| D | D1 | L | L1 | H | 適用溫度(℃) | 適用介質 | ||||
| SFH-64C150C | 2" | 150 | 203 | 170 | WCB | ≤425 | 水、油品、蒸氣等 | |||
| " | 3" | " | 241 | 185 | " | " | " | |||
| " | 4" | " | 292 | 215 | " | " | " | |||
| " | 6" | " | 356 | 260 | " | " | " | |||
| " | 8" | " | 495 | 300 | " | " | " | |||
| " | 10" | " | 622 | 350 | " | " | " | |||
| " | 12" | " | 699 | 400 | " | " | " | |||
| " | 14" | " | 787 | 450 | " | " | " | |||
| " | 16" | " | 864 | 480 | " | " | " | |||
| " | 18" | " | 978 | 540 | " | " | " | |||
| " | 20" | " | 978 | 600 | " | " | " | |||
| " | 24" | " | 1295 | 680 | " | " | " | |||
| SFH-64C300C | 2" | 300 | 267 | 170 | WCB | ≤425 | 水、油品、蒸氣等 | |||
| " | 3" | " | 318 | 215 | " | " | " | |||
| " | 4" | " | 356 | 235 | " | " | " | |||
| " | 6" | " | 445 | 300 | " | " | " | |||
| " | 8" | " | 533 | 340 | " | " | " | |||
| " | 10" | " | 622 | 350 | " | " | " | |||
| " | 12" | " | 711 | 420 | " | " | " | |||
| " | 14" | " | 838 | 480 | " | " | " | |||
| " | 16" | " | 864 | 520 | " | " | " | |||
| " | 18" | " | 978 | 600 | " | " | " | |||
| " | 20" | " | 1016 | 670 | " | " | " | |||
| " | 24" | " | 1346 | 750 | " | " | " | |||
| SFH-64C600C | 2" | 600 | 292 | 175 | WCB | ≤425 | 水、油品、蒸氣 | |||
| " | 3" | " | 356 | 230 | " | " | " | |||
| " | 4" | " | 432 | 295 | " | " | " | |||
| " | 6" | " | 559 | 360 | " | " | " | |||
| " | 8" | " | 660 | 400 | " | " | " | |||
| " | 10" | " | 787 | 460 | " | " | " | |||
| " | 12" | " | 838 | 520 | " | " | " | |||
| " | 14" | " | 889 | 560 | " | " | " | |||
| " | 16" | " | 991 | 650 | " | " | " | |||
| " | 18" | " | 1092 | 730 | " | " | " | |||
| " | 20" | " | 1194 | 800 | " | " | " | |||
| " | 24" | " | 1397 | 900 | " | " | " | |||
