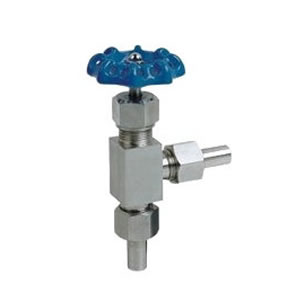

外螺紋角式截止閥J24W
2016-08-02
外螺旋角式截止閥主要零件材料Materials for main parts
| 零件名稱Part name | 閥體、閥蓋Body,Bonnet | 閥桿、閥瓣Stem,Disc | 填料Packing |
| J24W-160P-DN3 |
鉻鎳不銹鋼 Cr.Ni Stainless steel |
不銹鋼 Stainliess steel |
聚四氟乙稀、柔性石墨 PTEF,Soft graphite |
| J24W-320P-DN6 |
優質碳鋼 High grade carbon steel |
鉻鎳不銹鋼 Cr.Ni Stainliss steel |
聚四氟乙稀、柔性石墨 PTEF,Soft graphite |
| 型號Type |
公稱壓力(MPa) Nominal pressure |
試驗壓力PS(MPa)Test pressure |
工作壓力(MPa) Working pressure |
工作溫度(℃) Working temperature |
適用介質Applicable mediun | ||
| 殼體Shell | 密封（液）Seal | 密封（氣）Seal | |||||
| J24W-160P-DN3 | 16.0 | 24.0 | 17.6 | 0.6 | 16.0 | P≤200℃ | 液化石油氣水、油品等Petroleun gas Water,Oil etc. |
| J24W-320P-DN6 | 32.0 | 48.0 | 35.2 | 0.6 | 32.0 | C≤425℃ | |
| 型號Type |
公稱直徑DN(mm) Nominaldameter |
尺寸Dimensions | 重量(Kg)Weight | |||||
| L1 | Do | D2 | H | H1 | D1 | |||
| J24W-160P-DN3 | 3 | 80 | 65 | 159 | 170 | 14 | 3 | 1.0 |
| J24W-320P-DN6 | 6 | 80 | 65 | 159 | 170 | 14 | 6 | 1.0 |
