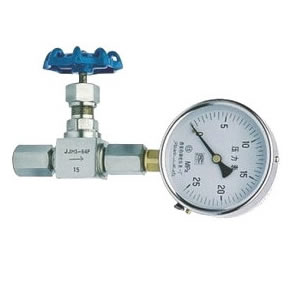

壓力表針型閥JJM1
2016-08-02
壓力針型閥主要零件材料Materials for main parts
|
零件名稱 Part name |
閥桿、閥蓋、螺栓Body,Bonnet bolt | 閥桿、閥瓣密封圈Stem,Disc,Gasket |
填料 Packing |
墊片 Gasket |
手柄 Hande |
| JJM1-160-DN5 | 鉻鎳不銹鋼Cr.NiStainlesss steel |
不銹鋼 Stainless steel |
聚四氧乙稀、柔性石墨PTEF,Soft graphite | 橡膠石棉板Latex asbestos |
優質碳鋼 High grade Garbon steelll |
壓力表針型閥主要性能規范Chief property and specifieation
|
型號 Type |
公稱壓力 (MPa) Nominal pressure |
試驗壓力PS(MPs) Test pressure |
工作壓力(MPa) Working pressure |
工作溫度(℃) Working temperature |
適用介質Applicable mediun |
||
| 殼體Shell |
密封 （液）Seal |
密封 （氣）Seal |
|||||
| JJM1-160-DN5 | 16.0 | 24.0 | 17.6 | 0.6 | 16.0 | P≤200℃ |
液化石油氣水、油品等Petroleun gas Water, Oil etc. |
| C≤425℃ | |||||||
壓力表針型閥主要外形及連接尺寸Main external and connecting dimensions(mm)
| 型號Type |
公稱直徑DN(mm)Nominal dameter |
尺寸Dimensions | 重量(Kg)Weight | |||||||
| L1 | Do | L2 | H | H1 | L3 | M1 | M2 | |||
| JJM1-160 | 5 | 116 | 65 | 85 | 98 | 105 | 40 | M20×1.5左 | M20×1.5 | 1.0 |
